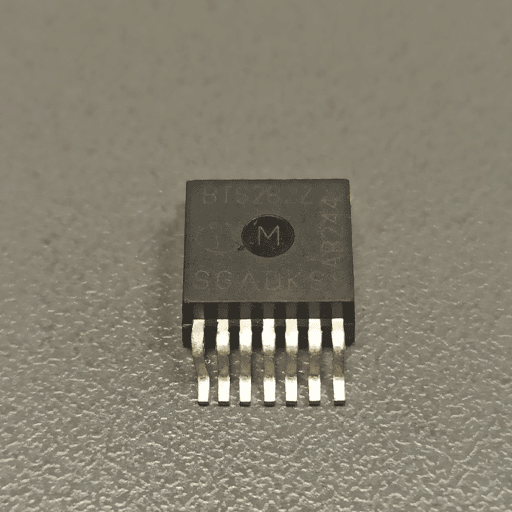

آی سی خودرویی BTS282Z

BTS 282 Z Speed TEMPFET
N-Channel
Enhancement mode
Logic Level Input
Analog driving possible
Fast switching up to 1 MHz
Potential-free temperature sensor with 1 7 VPT05754 1 7 VPT05167 thyristor characteristics
Overtemperature protection
Avalanche rated
High current pinning 1 7 Type BTS 282 Z VDS 49 V RDS(on) 6.5 m
Package P-TO220-7-3 P-TO220-7-180 P-TO220-7-230 Ordering Code Q67060-S6004-A2 Q67060-S6005-A2 Q67060-S6007 D Pin 4 and TAB G Pin 2 A Pin 3 Temperature Sensor K Pin 5 S Pin 1 + 6 + 7 Pin 1 2 3 4 5 6 7 Symbol S G A D K S S Function Source Gate Anode Temperature Sensor Drain Cathode Temperature Sensor Source Source 1 2000-09-11 BTS 282 Z Maximum Ratings Parameter Drain source voltage Drain-gate voltage , RGS = 20 k
Gate source voltage Nominal load current (ISO 10483) VGS = 10 V, VDS VGS = 4.5 V, VDS 0.5 V, TC = 85 °C Symbol VDS V Value 49 49 Unit V DGR VGS ID(ISO) 20 A 36 52 0.5 V, TC = 85 °C Continuous drain current 1) TC = 100 °C, VGS = 4.5V Pulsed drain current Avalanche energy, single pulse ID = 36 A, RGS = 25
Power dissipation TC = 25 °C Operating temperature 2) Peak temperature ( single event ) Storage temperature DIN humidity category, DIN 40 040 IEC climatic category; DIN IEC 68-1 ID ID puls EAS Ptot Tj Tjpeak Tstg 80 320 2 300 -40 …+175 200 -55 … +150 E 40/150/56 J W °C 1current limited by bond wire 2Note: Thermal trip temperature of temperature sensor is below 175°C 2 2000-09-11 BTS 282 Z Thermal Chara.
