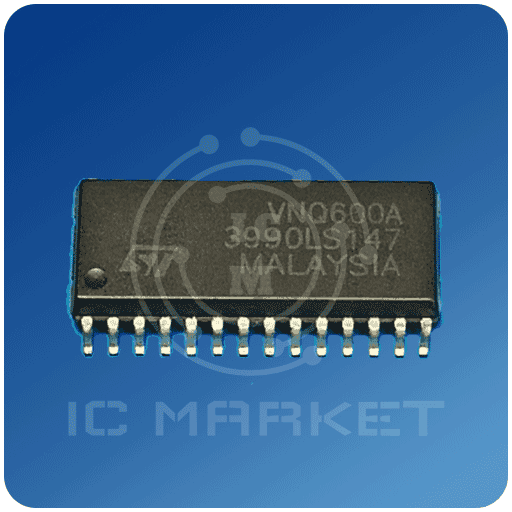

آی سی درایو کوئل VNQ600A

STMicroelectronics

View VNQ600A Datasheet

Download VNQ600A PDF File

Description

® P VNQ600A QUAD CHANNEL HIGH SIDE SOLID STATE RELAY TYPE VNQ600A (*) Per each channel RDS(on)(*) 35mΩ Ilim 25A VCC 36 V DC SHORT CIRCUIT CURRENT: 25A CMOS COMPATIBLE INPUTS s PROPORTIONAL LOAD CURRENT SENSE s UNDERVOLTAGE & OVERVOLTAGE nSHUT-DOWN s OVERVOLTAGE CLAMP s THERMAL SHUT-DOWN s CURRENT LIMITATION s VERY LOW STAND-BY POWER DISSIPATION s PROTECTION AGAINST: nLOSS OF GROUND & LOSS OF VCC s REVERSE BATTERY PROTECTION (**) s s SO-28 (DOUBLE ISLAND) ORDER CODES PACKAGE SO-28 TUBE VNQ600A T&R VNQ600A13TR DESCRIPTION The VNQ600A is a quad HSD formed by assembling two VND600 chips in the same SO-28 ABSOLUTE MAXIMUM RATING Symbol VCC -VCC IOUT IR IIN VCSENSE IGND package. The VND600 is a monolithic device designed in| STMicroelectronics VIPower M0-3 Technology. The VNQ600A is intended for driving any type of multiple loads with one side connected to ground. This device has four independent channels and four analog sense outputs which deliver currents proportional to the outputs currents. Active current limitation combined with thermal shut-down and automatic restart protect the device against overload. Device automatically turns off in case of ground pin disconnection. Value 41 -0.3 15 -15 +/- 10 -3 +15 -200 4000 2000 5000 5000 126 6.25 Internally Limited -55 to 150 Unit V V A A mA V V mA V V V V mJ W °C °C Parameter Supply voltage (continuous) Reverse supply voltage (continuous) Output current (continuous), for each channel Reverse output current (continuous), for…
