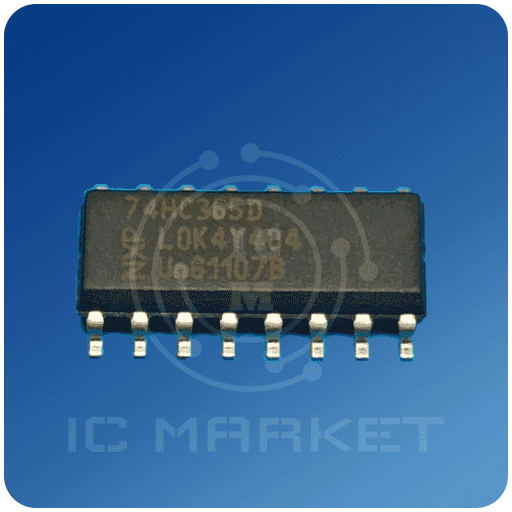

آی سی درایو 74hc365d

74HC365; 74HCT365 Hex buffer/line driver; 3-state Rev. 5 — 12 February 2021 Product data sheet 1. General description The 74HC365; 74HCT365 is a hex buffer/line driver with 3-state outputs controlled by the output enable inputs (OEn). A HIGH on OEn causes the outputs to assume a high impedance OFF-state. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC. 2. Features and benefits • Wide supply voltage range from 2.0 V to 6.0 V • CMOS low power dissipation • High noise immunity • Latch-up performance exceeds 100 mA per JESD 78 Class II Level B • Complies with JEDEC standards: • JESD8C (2.7 V to 3.6 V) • JESD7A (2.0 V to 6.0 V) • Non-inverting outputs • Input levels: • For 74HC365: CMOS level • For 74HCT365: TTL level • ESD protection: • • HBM JESD22-A114F exceeds 2000 V • MM JESD22-A115-A exceeds 200 V • Multiple package options • Specified from -40 °C to +85 °C and from -40 °C to +125 °C 3. Ordering information Table 1. Ordering information Type number Package Temperature range Name 74HC365D -40 °C to +125 °C SO16 74HCT365D 74HCT365DB -40 °C to +125 °C SSOP16 74HC365PW -40 °C to +125 °C 74HCT365PW TSSOP16 Description Version plastic small outline package; 16 leads; body width 3.9 mm SOT109-1 plastic shrink small outline package; 16 leads; body width 5.3 mm plastic thin shrink small outline package; 16 leads; body width 4.4 mm SOT338-1 SOT403-1 Nexperia 4. Functional diagram 74HC365; 74.
