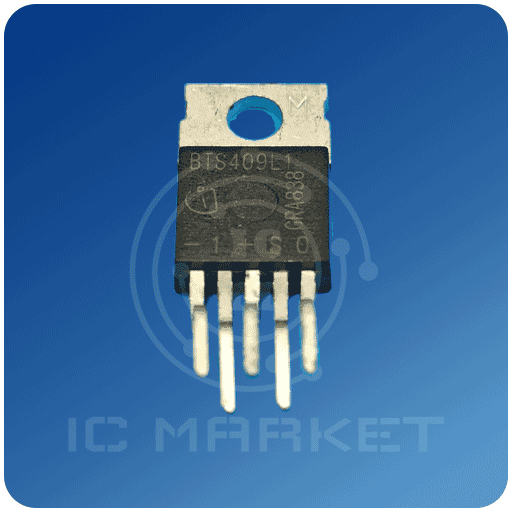

آی سی درایو BTS409L1

PROFET® BTS409L1 Smart Highside Power Switch Features • Overload protection • Current limitation • Short circuit protection • Thermal shutdown • Overvoltage protection (including load dump) • Fast demagnetization of inductive loads • Reverse battery protection1) • Undervoltage and overvoltage shutdown with auto-restart and hysteresis • Open drain diagnostic output • Open load detection in ON-state • CMOS compatible input • Loss of ground and loss of Vbb protection • Electrostatic discharge (ESD) protection Product Summary Overvoltage protection Operating voltage On-state resistance Load current (ISO) Current limitation Vbb(AZ) Vbb(on) RON IL(ISO) IL(SCr) 43 V 5.0 … 34 V 200 mΩ 2.3 A 4 A TO-220AB/5 5 1 Straight leads 5 5 1 Standard SMD Application • µC compatible power switch with diagnostic feedback for 12 V and 24 V DC grounded loads • All types of resistive, inductive and capacitve loads • Replaces electromechanical relays, fuses and discrete circuits General Description N channel vertical power FET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in Smart SIPMOS® technology. Fully protected by embedded protection functions. + V bb 3 Voltage source Overvoltage protection Current limit Gate protection V Logic Voltage sensor Charge pump Level shifter Rectifier ESD Logic Open load Short to Vbb detection R O Limit for unclamped ind. loads OUT 2 IN Temperature sensor 5 Load 4 ST GND ® PROF.
