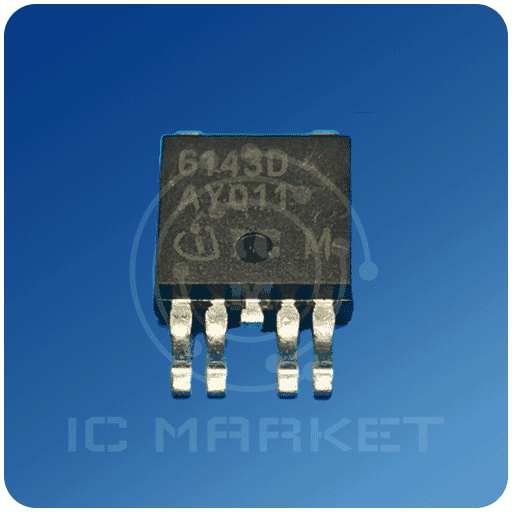

آی سی درایو BTS6143D FCM

PROFET® BTS 6143 D Smart Highside Power Switch Reversave • Reverse battery protection by self turn on of power MOSFET Features • Short circuit protection with latch • Current limitation • Overload protection • Thermal shutdown with restart • Overvoltage protection (including load dump) • Loss of ground protection • Loss of Vbb protection (with external diode for charged inductive loads) • Very low standby current • Fast demagnetisation of inductive loads • Electrostatic discharge (ESD) protection • Optimized static electromagnetic compatibility (EMC) • Green Product (RoHS compliant) • AEC qualified Product Summary Operating voltage Vbb(on) 5.5 … 38 V On-state resistance RON 10 mΩ Nominal current IL(nom) 8A Load current (ISO) IL(ISO) 33 A Current limitation IL12(SC) 75 A Package PG-TO252-5-11 (DPAK 5 pin; less than half the size as TO 220 SMD) Diagnostic Function • Proportional load current sense (with defined fault signal in case of overload operation, overtemperature shutdown and/or short circuit shutdown) Application • Power switch with current sense diagnostic feedback for 12V and 24 V DC grounded loads • All types of resistive, inductive and capacitive loads • Replaces electromechanical relays, fuses and discrete circuits General Description N channel vertical power FET with charge pump, current controlled input and diagnostic feedback with load current sense, integrated in Smart SIPMOS chip on chip technology. Providing embedded protective funct.
