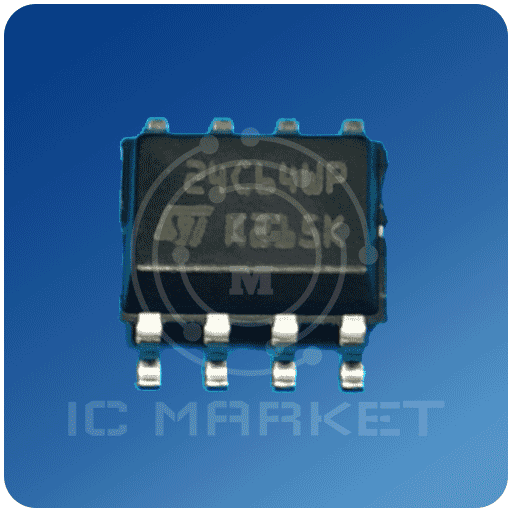

آی سی 24C64

STMicroelectronics

 Download 24C64WP Datasheet





Description

  PDIP8 (BN) TSSOP8 (DW) 169 mil width SO8 (MN) 150 mil width UFDFPN8 (MC) DFN8 – 2×3 mm UFDFPN5 (MH) DFN5 -1.7×1.4 mm WLCSP (CS) Thin WLCSP (CT) WLCSP (CU) Unsawn wafer M24C64-W M24C64-R M24C64-F M24C64-DF 64-Kbit serial I²C bus EEPROM Datasheet – production data Features Compatible with all I2C bus modes: – 1 MHz – 400 kHz – 100 kHz Memory array: – 64 Kbit (8 Kbyte) of EEPROM – Page size: 32 byte – Additional Write lockable page (M24C64-D order codes) Single supply voltage: – 1.7 V to 5.5 V over –40 °C / +85 °C – 1.6 V to 5.5 V over 0 °C / +85 °C Write: – Byte Write within 5 ms – Page Write within 5 ms Random and sequential Read modes Write protect of the whole memory array Enhanced ESD/Latch-Up protection More than 4 million Write cycles More than 200-years data retention Packages PDIP8 ECOPACK2® SO8 ECOPACK2® TSSOP8 ECOPACK2® UFDFPN ECOPACK2® WLCSP ECOPACK2® Unsawn wafer (each die is tested) March 2018 This is information on a product in full production. DS6638 Rev 36 1/54 www.st.com Contents Contents M24C64-W M24C64-R M24C64-F M24C64-DF 1 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 2 Signal description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 2.1 Serial Clock (SCL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 2.2 Serial Data (SDA) . . . . . . . . . . . . . . . . . …
