توضیحات

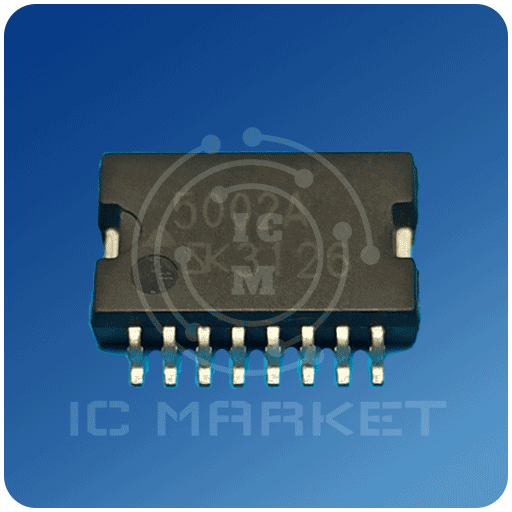

آی سی 5002A
SPF5002A
| Part Number | SPF5002A |
| Manufacturer | Sanken |
| Description | Low-side Switch |
| Published | Apr 22, 2019 |
| Detailed Description | Low-side Switch ICs [Surface-mount 4-circuits] SPF5002A Features ● DMOS 4ch output ● Allows ON/OFF using C-MOS logic le… |
| Datasheet |  SPF5002A PDF File |
Overview
Low-side Switch ICs [Surface-mount 4-circuits] SPF5002A Features ● DMOS 4ch output ● Allows ON/OFF using C-MOS logic level ● Built-in overcurrent, overvoltage and thermal protection circuits External Dimensions (unit: mm) 12.
2 ±0.
2 10.
5 ±0.
2 16 9 1.
0 +0.
1 –0.
05 Fin thickness +0.
2 2.
0 –0.
8 Absolute Maximum Ratings Parameter Symbol Ratings (Ta =25ºC) Unit Conditions Power supply voltage Output terminal voltage Input terminal voltage Output current Power Dissipation Storage temperature VB VOUT VIN IO PD Tstg 40 37 –0.
5 to +7.
5 1.
8 2 –40 to +150 V V* V A W ºC Channel temperature Tch 150 ºC Output avalanche capability EAV 50 mJ Single pulse Note: * At the clamping operati…
