آی سی 74HC08D

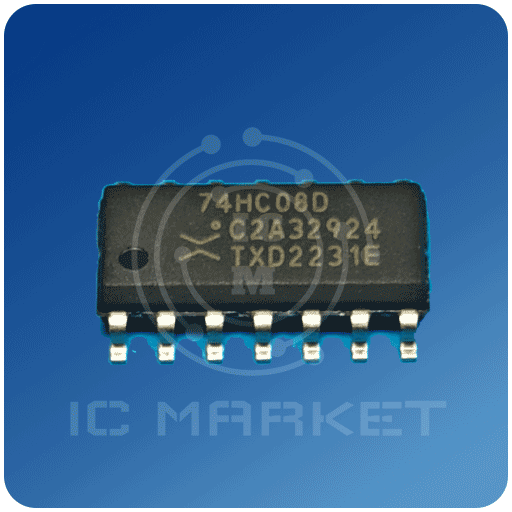

74HC08D
| Part Number | 74HC08D |
| Manufacturer | nexperia |
| Description | Quad 2-input AND gate |
| Published | Dec 26, 2020 |
| Detailed Description | 74HC08; 74HCT08 Quad 2-input AND gate Rev. 8 — 10 August 2021 Product data sheet 1. General description The 74HC08; 74… |
| Datasheet |  74HC08D PDF File |
Overview
74HC08; 74HCT08 Quad 2-input AND gate Rev.
8 — 10 August 2021 Product data sheet 1.
General description The 74HC08; 74HCT08 is a quad 2-input AND gate.
Inputs include clamp diodes.
This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
2.
Features and benefits • Wide supply voltage range from 2.
0 V to 6.
0 V • CMOS low power dissipation • High noise immunity • Latch-up performance exceeds 100 mA per JESD 78 Class II Level B • Input levels: • For 74HC08: CMOS level • For 74HCT08: TTL level • Complies with JEDEC standards: • JESD8C (2.
7 V to 3.
6 V) • JESD7A (2.
0 V to 6.
0 V) • ESD protection: • HBM JESD22-A114F exceeds 2000 V • MM JESD22-A115-A ex…
