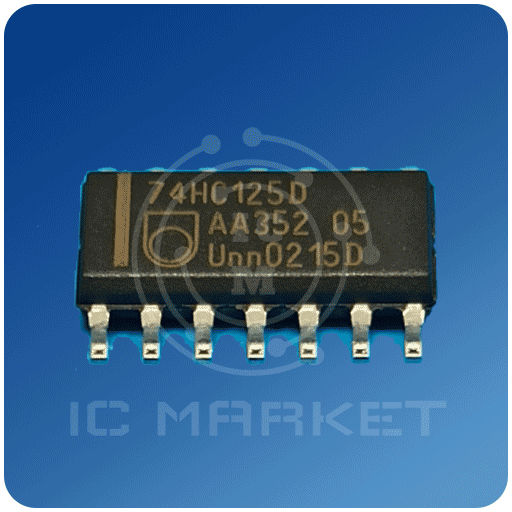

آی سی 74HC125D
74HC125D
| Part Number | 74HC125D |
| Manufacturer | nexperia |
| Description | Quad buffer/line driver |
| Published | Dec 26, 2020 |
| Detailed Description | 74HC125; 74HCT125 Quad buffer/line driver; 3-state Rev. 7 — 4 February 2021 Product data sheet 1. General description … |
| Datasheet |  74HC125D PDF File |
Overview
74HC125; 74HCT125 Quad buffer/line driver; 3-state Rev.
7 — 4 February 2021 Product data sheet 1.
General description The 74HC125; 74HCT125 is a quad buffer/line driver with 3-state outputs controlled by the output enable inputs (nOE).
A HIGH on nOE causes the outputs to assume a high impedance OFF-state.
Inputs include clamp diodes.
This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
2.
Features and benefits • Wide supply voltage range from 2.
0 to 6.
0 V • CMOS low power dissipation • High noise immunity • Latch-up performance exceeds 100 mA per JESD 78 Class II Level B • Complies with JEDEC standards: • JESD8C (2.
7 V to 3.
6 V) • JESD7A (2.
…
