توضیحات

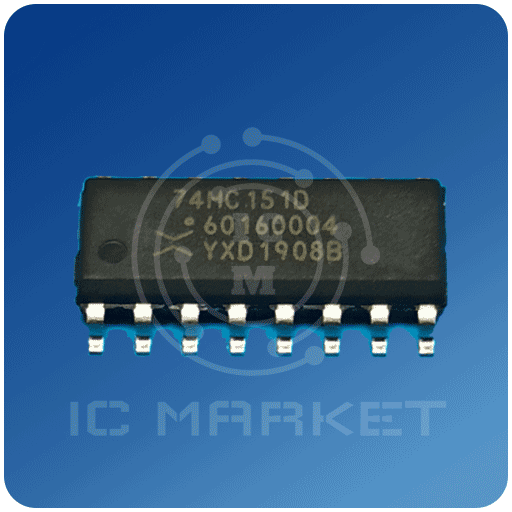

آی سی 74HC151D











74HC151D

Part Number	74HC151D
Manufacturer	nexperia
Description	8-input multiplexer
Published	Dec 26, 2020
Detailed Description	74HC151; 74HCT151 8-input multiplexer Rev. 10 — 19 October 2022 Product data sheet 1. General description The 74HC151;…
Datasheet	74HC151D PDF File

---





---



74HC151; 74HCT151 8-input multiplexer Rev.
10 — 19 October 2022 Product data sheet 1.
General description The 74HC151; 74HCT151 is an 8-bit multiplexer with eight binary inputs (I0 to I7), three select inputs (S0 to S2) and an enable input (E).
One of the eight binary inputs is selected by the select inputs and routed to the complementary outputs (Y and Y).
A HIGH on E forces the output Y LOW and output Y HIGH.
Inputs also include clamp diodes that enable the use of current limiting resistors to interface inputs to voltages in excess of VCC.
2.
Features and benefits • Wide supply voltage range from 2.
0 V to 6.
0 V • CMOS low power dissipation • High noise immunity • Latch-up performance ex…
