توضیحات

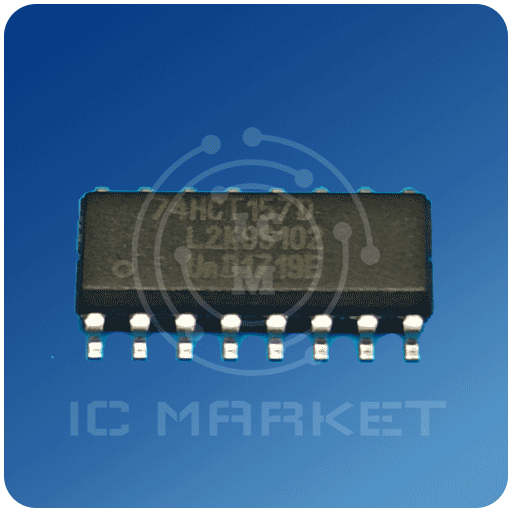

آی سی 74HCT157D
74HCT157D
| Part Number | 74HCT157D |
| Manufacturer | nexperia |
| Description | Quad 2-input multiplexer |
| Published | Dec 26, 2020 |
| Detailed Description | 74HC157; 74HCT157 Quad 2-input multiplexer Rev. 9 — 24 July 2020 Product data sheet 1. General description The 74HC157… |
| Datasheet |  74HCT157D PDF File |
Overview
74HC157; 74HCT157 Quad 2-input multiplexer Rev.
9 — 24 July 2020 Product data sheet 1.
General description The 74HC157; 74HCT157 is a quad 2-input multiplexer.
The device features select (S) and enable E inputs.
A HIGH on S selects data source 1, a LOW data source 0.
A HIGH on E forces all the outputs (1Y to 4Y) LOW.
Inputs include clamp diodes.
This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
2.
Features and benefits • Wide supply voltage range from 2.
0 V to 6.
0 V • CMOS low power dissipation • High noise immunity • Latch-up performance exceeds 100 mA per JESD 78 Class II Level B • Complies with JEDEC standards: • JESD8C (2.
7 V to 3.
6 V…
