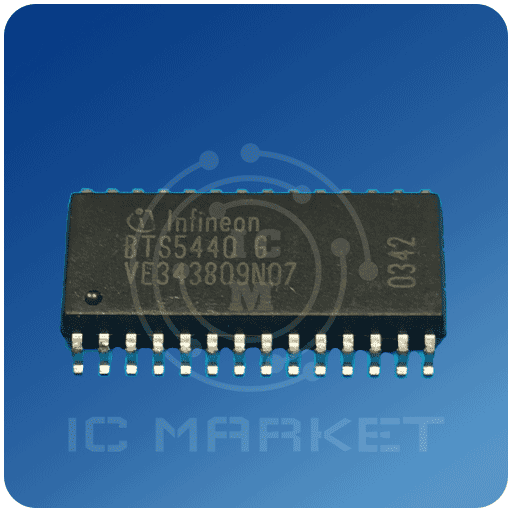

آی سی BTS5440G

Addendum for PCN 2004-018-A BTS 5440 G Addendum for PCN-Datasheet 2004-018-A: BTS 5440 G This Addendum and PCN-Datasheet refers to the PCN 2004-018-A: “Minor datasheet adaption for BTS 5240 L, BTS 5240 G, BTS 5440 G “. The PCN-datasheet attached will be valid starting from August 2004. There are the following changes in the datasheet (on page 7): Old: Current limit adjustment threshold voltage New: Current limit adjustment threshold voltage Symbol VCLA(T-) min 2.0 typ max 4.0 Unit V Symbol VCLA(T-) min 2.6 typ max 3.6 Unit V PCN 2004-018-A: BTS 5440G Smart High-Side Power Switch Four Channels: 4 x 25mΩ IntelliSense Product Summary Operating voltage V bb(on) Active channels On-state resistance Nominal load current Current limitation Low High RON IL(nom) IL(SCr) one 25 6.2 10 40 4,5…28 ( Loaddump: 40 V ) four parallel 6.5 13.9 mΩ A A V Package P-DSO-28-19 General Description • N channel vertical power MOSFET with charge pump, ground referenced CMOS compatible input and  technology. diagnostic feedback, monolithically integrated in Smart SIPMOS • Providing embedded protective functions. • Extern adjustable current limitation. Application • • • • All types of resistive, inductive and capacitive loads µC compatible high-side power switch with diagnostic feedback for 12 V grounded loads Due to the adjustable current limitation best suitable for loads with high inrush currents, so as lamps Replaces electromechanical relays, fuses and discrete circuits Basic Functions • Ve.
