توضیحات

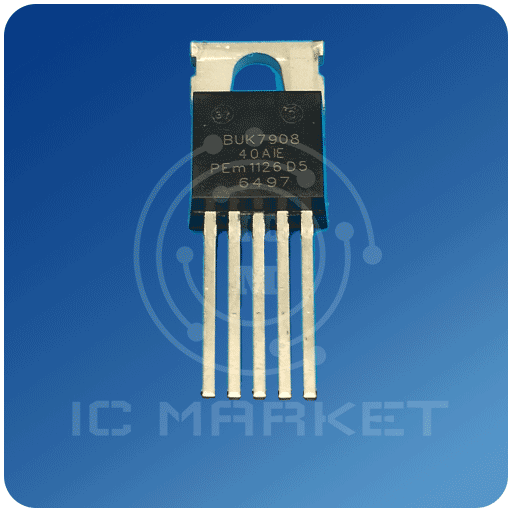

آی سی BUK7908











BUK7908-40AIE

Part Number	BUK7908-40AIE
Manufacturer	NXP
Description	(BUK7108-40AIE / BUK7908-40AIE) TrenchPLUS standard level FET
Published	Jan 19, 2007
Detailed Description	www.DataSheet4U.com BUK71/7908-40AIE TrenchPLUS standard level FET Rev. 02 — 24 October 2003 Product data 1. Product p…
Datasheet	BUK7908-40AIE PDF File

---

---

Overview

www.
DataSheet4U.
com BUK71/7908-40AIE TrenchPLUS standard level FET Rev.
02 — 24 October 2003 Product data 1.
Product profile 1.
1 Description N-channel enhancement mode field-effect power transistor in a plastic package using TrenchMOS™ technology, featuring very low on-state resistance, TrenchPLUS current sensing and diodes for ESD protection.
1.
2 Features s ESD protection s Integrated current sensor s Q101 compliant s Standard level compatible.
1.
3 Applications s Variable Valve Timing for engines s Electrical Power Assisted Steering.
1.
4 Quick reference data s VDS ≤ 40 V s ID ≤ 117 A s RDSon = 6 mΩ (typ) s ID/Isense = 500 (typ).
2.
Pinning information Table 1: Pin 1 2 3 4 5 mb Pinning -…
