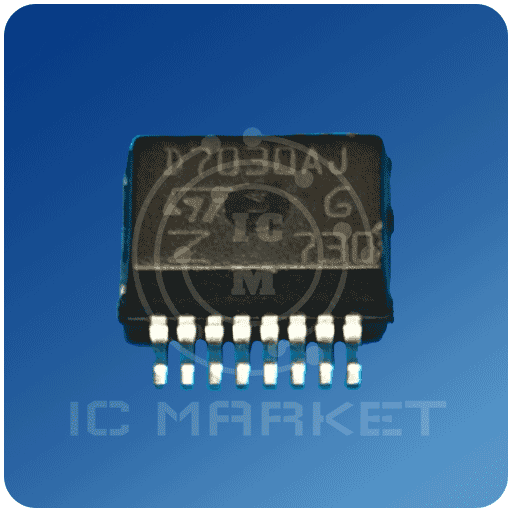

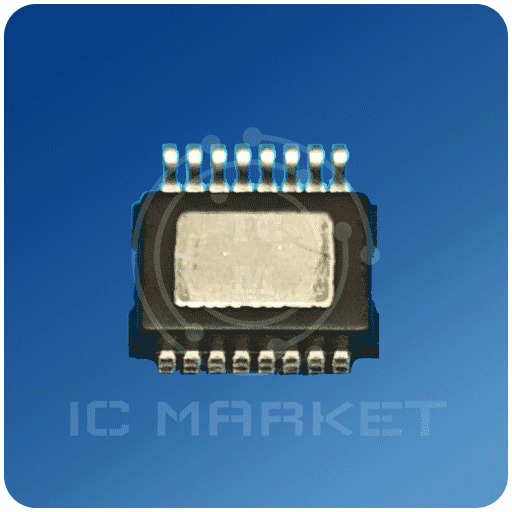

آی سی D7030AJ

VND7030AJ Double channel high-side driver with MultiSense analog feedback for automotive applications Datasheet – production data − Loss of ground and loss of VCC − Reverse battery with external components − Electrostatic discharge protection Features Max transient supply voltage Operating voltage range Typ. on-state resistance (per Ch) Current limitation (typ) Standby current (max) VCC 40 V VCC 4 to 28 V RON 31 mΩ ILIMH 56 A ISTBY 0.5 µA Automotive qualified General − Double channel smart high-side driver with MultiSense analog feedback − Very low standby current − Compatible with 3 V and 5 V CMOS outputs MultiSense diagnostic functions − Multiplexed analog feedback of: load current with high precision proportional current mirror, VCC supply voltage and TCHIP device temperature − Overload and short to ground (power limitation) indication − Thermal shutdown indication − OFF-state open-load detection − Output short to VCC detection − Sense enab…
