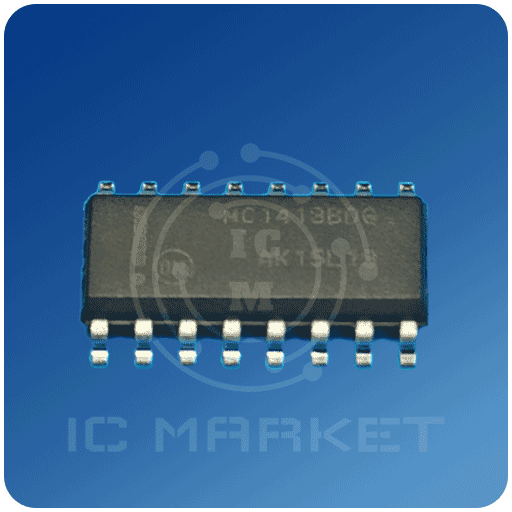

آی سی MC1413BD

MC1413, MC1413B, NCV1413B High Voltage, High Current Darlington Transistor Arrays The seven NPN Darlington connected transistors in these arrays are well suited for driving lamps, relays, or printer hammers in a variety of industrial and consumer applications. Their high breakdown voltage and internal suppression diodes insure freedom from problems associated with inductive loads. Peak inrush currents to 500 mA permit them to drive incandescent lamps. The MC1413, B with a 2.7 kW series input resistor is well suited for systems utilizing a 5.0 V TTL or CMOS Logic. Features http://onsemi.com 16 1 PDIP−16 P SUFFIX CASE 648 • Pb−Free Packages are Available* • NCV Prefix for Automotive and Other Applications Requiring Site and Control Changes 1/7 MC1413, B 2.7 k 5.0 k 3.0 k www.DataSheet4U.com 16 1 SOIC−16 D SUFFIX CASE 751B ORDERING INF.
