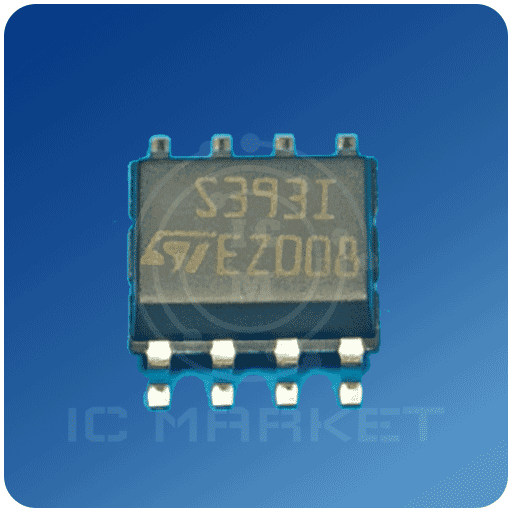

آی سی S393I

® TS393C,I,M MICROPOWER DUAL CMOS VOLTAGE COMPARATORS . . . . . . . . EXTREMELY LOW SUPPLY CURRENT : 9µA TYP/COMPARATOR WIDE SINGLE SUPPLY RANGE (3V to 16V) OR DUAL SUPPLIES (±1.5V to ±8V) EXTREMELY LOW INPUT BIAS CURRENT : 1pA TYP EXTREMELY LOW INPUT OFFSET CURRENT : 1pA TYP INPUT COMMON-MODE VOLTAGE RANGE INCLUDES GND HIGH INPUT IMPEDANCE 1012Ω TYP FAST RESPONSE TIME : 2.5µs TYP FOR 5mV OVERDRIVE PIN-TO-PIN AND FUNCTIONALLY COMPATIBLE WITH BIPOLAR LM393 N DIP8 (Plastic Package) D SO8 (Plastic Micropackage) P TSSOP8 (Thin Shrink Small Outline Package) DESCRIPTION The TS393 is a micropower CMOS dual voltage comparator with extremely low consumption of 9µA typ / comparator (20 times less than bipolar LM393). Similar performances are offered by the dual micropower comparator TS3702 with a pushpull CMOS output. Thus response times re.
