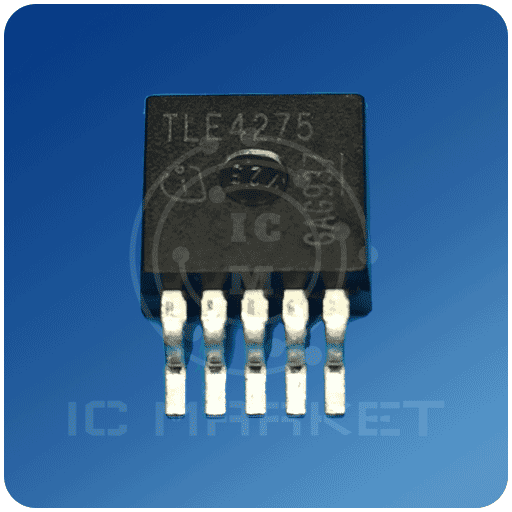

آی سی TLE4275

5-V Low-Drop Voltage Regulator TLE 4275 Features • • • • • • • • • Output voltage 5 V ± 2% Very low current consumption Power-on and undervoltage reset Reset low down to VQ = 1 V Very low-drop voltage Short-circuit-proof Reverse polarity proof Suitable for use in automotive electronics ESD protection > 4 kV Ordering Code Package P-TO252-5-1 (SMD) P-TO263-5-1 (SMD) P-TO220-5-11 P-TO220-5-12 P-TO263-5-1 P-TO252-5-1 Type • TLE 4275 D Q67006-A9354 • TLE 4275 G Q67006-A9343 • TLE 4275 • New type Functional Description Q67000-A9342 • TLE 4275 S Q67000-A9442 The TLE 4275 is a monolithic integrated low-drop voltage regulator in a 5 pin TO-package. An input voltage up to 45 V is regulated to VQ,nom = 5.0 V. The IC is able to drive loads up to 450 mA and is short-circuit proof. At overtemperature the TLE 4275 is turned off by the incorporated.
