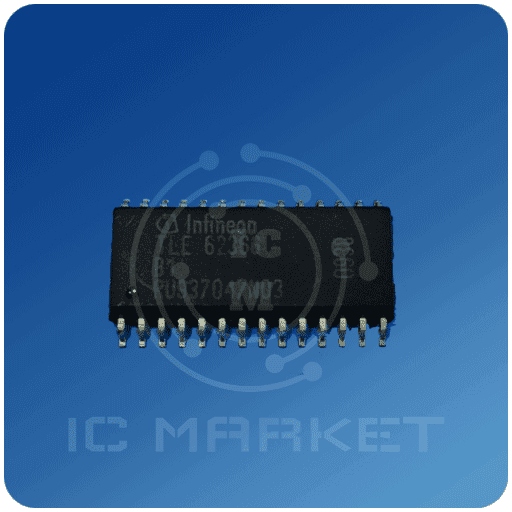

آی سی TLE6236G

Datasheet TLE 6236 G Smart Octal Low-Side Switch Features Product Summary • Short Circuit Protection • Overtemperature Protection • Overvoltage Protection • 8 bit Serial Data Input and Diagnostic Output (acc. SPI protocol) Supply voltage Drain source clamping voltage On resistance VS 4.5 – 5.5 VDS(AZ)max 60 RON 1.7 V V Ω • Direct Parallel Control of Four Channels for PWM Applications • General Fault Flag Output current (all outp.ON equal) ID(NOM) (individually) 200 500 mA mA • Daisy chainable with other SPI devices • Very Low Leakage Current (≤ 1µA) • Compatible with 3V Micro Controllers • Electostatic Discharge (ESD) Protection Application • µC Compatible Power Switch for 12V and 24VApplications • Switch for Automotive and Industrial System • Solenoids, Relays, Resistive Loads, LEDs • Robotic Controls P-DSO 28 Ordering Code: General description Q67007-A9413-A705 Octal Low-Side Switch in Smart Power Technology (SPT) with a Ser.
