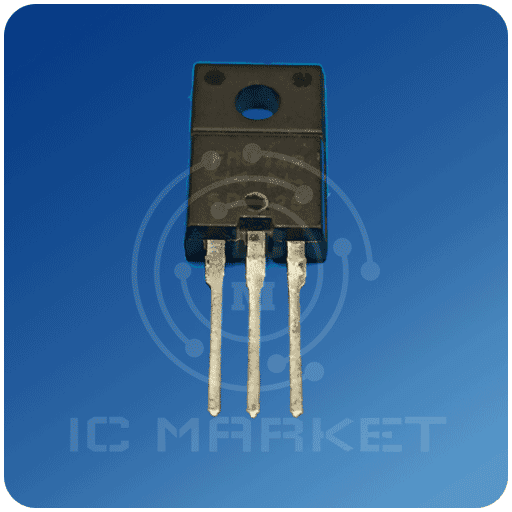

ترانزیستور FMU14R

SANKEN ELECTRIC CO., LTD. １ Scope The present specifications shall apply to FMU-14S,R. ２ Outline Type Silicon Diode Structure Resin Molded Applications High Frequency Rectification FMU-14S.R ３ Flammability UL94V-0(Equivalent) ４ Absolute maximum ratings No. Item Symbol Unit Rating Conditions 1 Transient Peak Reverse Voltage VRSM V 450 2 Peak Reverse Voltage 3 Average Forward Current 4 Peak Surge Forward Current 5 I2t Limiting Value VRM IF(AV) IFSM I2t V A A A2s 6 Junction Temperature Tj °C 7 Storage Temperature Tstg °C No.1, 2, 4 and 5 show ratings per one chip. ５ Electrical characteristics (Ta=25°C, unless otherwise specified) 400 5.0 Refer to derating curve in Section 7 30 10ms. Half sine wave, one shot 4.5 -40 to +150 1 ms ≤ t ≤ 10 ms 6 Junction Temperature -40～+150 7 Storage Temperature Tj Tstg No. Item Symbol Unit Value Conditions °C °C 1 Forward Voltage Drop VF V 1.5 max. IF=2.5A 2 Reverse Leakage Current IR 3 Revers.
