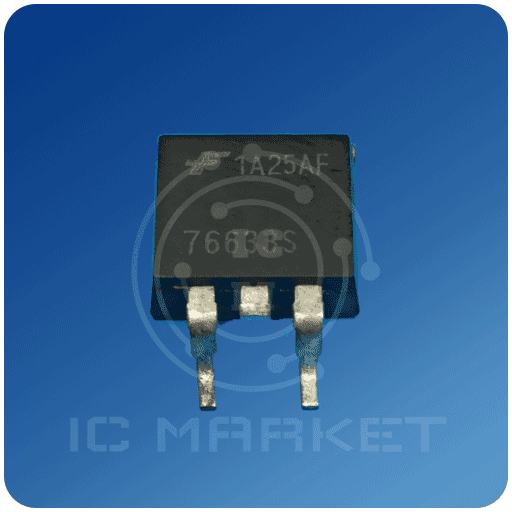

ترانزیستور HUF76633S

HUF76633P3, HUF76633S3S Data Sheet December 2001 38A, 100V, 0.036 Ohm, N-Channel, Logic Level UltraFET® Power MOSFET Packaging JEDEC TO-220AB SOURCE DRAIN GATE GATE SOURCE DRAIN (FLANGE) JEDEC TO-263AB DRAIN (FLANGE) Features • Ultra Low On-Resistance – rDS(ON) = 0.035Ω, VGS = 10V – rDS(ON) = 0.036Ω, VGS = 5V • Simulation Models – Temperature Compensated PSPICE® and SABER™ Electrical Models – Spice and SABER Thermal Impedance Models – www.Fairchildsemi.com • Peak Current vs Pulse Width Curve • UIS Rating Curve • Switching Time vs RGS Curves HUF76633P3 HUF76633S3S Symbol D Ordering Information G PART NUMBER HUF76633P3 S PACKAGE TO-220AB TO-263AB BRAND 76633P 76633S HUF76633S3S NOTE: When ordering, use the entire part number. Add the suffix T to obtain the variant in tape and reel, e.g., HUF76633S3ST. Absolute Maximum Ratings TC = 25oC, Unless Otherwise Specified HUF76633P3, HUF76633S3S UNITS V V V A A A A 100 100 ±16 38 39 27 27 Figure 4 Figures 6, 17, 18 145 0.97 -55 to 175 300 260 W W/oC oC oC oC Drain to Source Voltage (Note 1) . . . . . . . . . . . . . . . . . . . . . . . VDSS Drain to Gate Voltage (RGS = 20kΩ) (Note 1) . . . . . . . . . . . . . VDGR Gate to Source Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VGS Drain Current Continuous (TC= 25oC, VGS = 5V) . . . . . . . . . . . . . . . . . . . . . . ID Continuous (TC= 25oC, VGS = 10V) (Figure 2) . . . . . . . . . . . . . ID Continuous (TC= 100oC, VGS = 5V) . . . . . . . . . . . . ..
