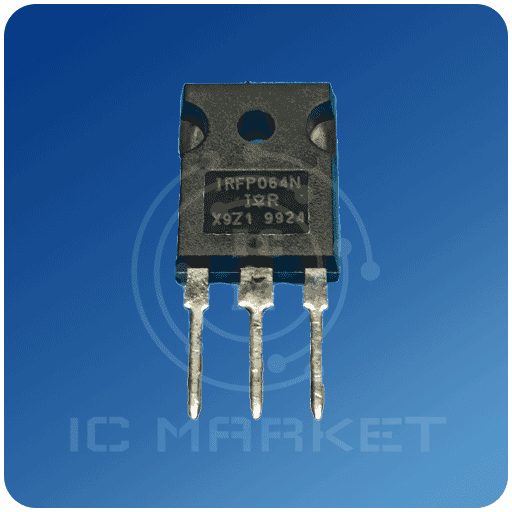

ترانزیستور IRFP064N

IRFP064, SiHFP064 Vishay Siliconix Power MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (Ω) Qg (Max.) (nC) Qgs (nC) Qgd (nC) Configuration VGS = 10 V 190 55 90 Single D FEATURES 60 0.009 • • • • • • • • Dynamic dV/dt Rating Repetitive Avalanche Rated Ultra Low On- Resistance Very Low Thermal Resistance Isolated Central Mounting Hole 175 °C Operating Temperature Fast Switching Compliant to RoHS Directive 2002/95/EC Available RoHS* COMPLIANT TO-247AC DESCRIPTION Third generation Power MOSFETs from Vishay provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-247AC package is preferred for commercial-industrial applications where higher power levels preclude the use of TO-220AB devices. The TO-247AC is similar but superior to the earlier TO-218 package because its isolated mounting hole. It also provides greater creepage distances between pins to meet the requirements of most safety specifications. G S D G S N-Channel MOSFET ORDERING INFORMATION Package Lead (Pb)-free SnPb TO-247AC IRFP064PbF SiHFP064-E3 IRFP064 SiHFP064 ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted) PARAMETER Drain-Source Voltage Gate-Source Voltage Continuous Drain Currente Pulsed Drain Linear Derating Factor Single Pulse Avalanche Energyb Repetitive Avalanche Currenta Repetitive Avalanche Energya Maximum Power Dissipation Peak Diode Recovery dV/dtc Operating Junction and Storage Temperature Range Soldering.
