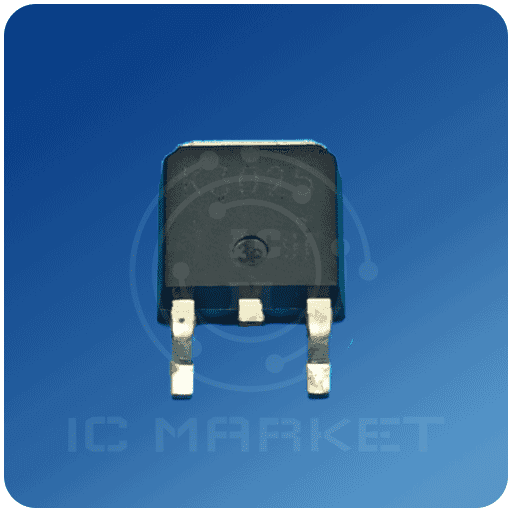

Power F-MOS FETs 2SK3025 (Tentative) Silicon N-Channel Power F-MOS FET s Features q Avalanche energy capacity guaranteed q High-speed switching q Low ON-resistance q No secondary breakdown q Low-voltage drive q High electrostatic breakdown voltage q Contactless relay q Diving circuit for a solenoid q Driving circuit for a motor q Control equipment q Switching power supply 7.3±0.1 1.8±0.1 unit: mm 6.5±0.1 5.3±0.1 4.35±0.1 2.3±0.1 0.5±0.1 s Applications 2.5±0.1 0.8max 0.93±0.1 1.0±0.1 0.1±0.05 0.5±0.1 s Absolute Maximum Ratings (TC = 25°C) Parameter Drain to Source breakdown voltage Gate to Source voltage Drain current DC Pulse Symbol VDSS VGSS ID IDP EAS* PD Tch Tstg Ratings 60 ±20 ±30 ±60 45 20 1 150 −55 to +150 Unit V V A A mJ 1 2 0.75±0.1 2.3±0.1 4.6±0.1 3 1: Gate 2: Drain 3: Source U Type Package Avalanche energy capacity Allowable power dissipation Channel temperature Storage temperature * TC = 25°C Ta = 25°C Internal Connection W °C °C S G D L = 0.1mH, IL = 30A, 1 pulse s Electrical Characteristics (TC = 25°C) Parameter Drain to Source cut-off current Gate to Source leakage current Drain to Source breakdown voltage Gate threshold voltage Drain to Source ON-resistance Forward transfer admittance Diode forward voltage Symbol IDSS IGSS VDSS Vth RDS(on)1 RDS(on)2 | Yfs | VDSF Coss td(on) tr tf td(off) Rth(ch-c) Rth(ch-a) VDD = 30V, ID = 15A VGS = 10V, RL = 2Ω Conditions VDS = 50V, VGS = 0 VGS = ±20V, VDS = 0 ID = 1mA, VGS = 0 VDS = 10V, ID = 1mA VGS = 10V, ID.
