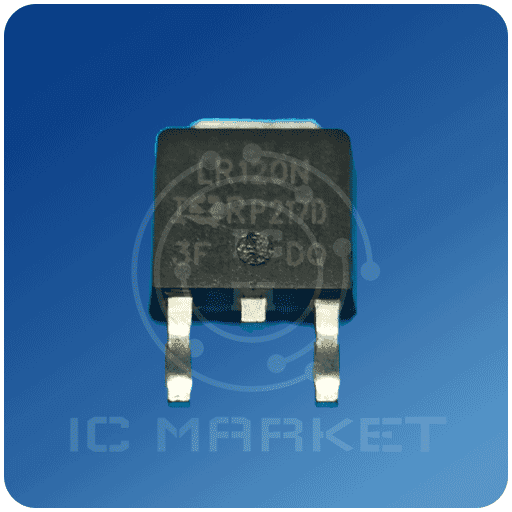

ترانزیستور LR120N

$GYDQFHG 3RZHU 026)(7 IRLR120N FEATURES ♦ Avalanche Rugged Technology ♦ Rugged Gate Oxide Technology ♦ Lower Input Capacitance ♦ Improved Gate Charge ♦ Extended Safe Operating Area ♦ Lower Leakage Current: 10µA (Max.) @ VDS = 100V ♦ Lower RDS(ON): 0.176Ω (Typ.) BVDSS = 100 V RDS(on) = 0.22Ω ID = 8.4 A D-PAK I-PAK 2 11 3 2 3 Absolute Maximum Ratings Symbol VDSS ID IDM VGS EAS IAR EAR dv/dt PD TJ , TSTG TL Characteristic Drain-to-Source Voltage Continuous Drain Current (TC=25°C) Continuous Drain Current (TC=100°C) Drain Current-Pulsed (1) Gate-to-Source Voltage Single Pulsed Avalanche Energy (2) Avalanche Current (1) Repetitive Avalanche Energy (1) Peak Diode Recovery dv/dt Total Power Dissipation (TA=25°C) * Total Power Dissipation (TC=25°C) Linear Derating Factor (3) Operating Junction and Storage Temperature Range Maximum Lead Temp. for Soldering Purposes, 1/8 from case for 5-seconds 1. Gate 2. Drain 3. Source Value 100 8.4 5 29 ±20 94 8.4 3.5 6.5 2.5 35 0.28 – 55 to +150 300 Units V A A V mJ A mJ V/ns W W W/°C °C Thermal Resistance Symbol Characteristic Typ. RθJC RθJA RθJA Junction-to-Case Junction-to-Ambient * Junction-to-Ambient —- * When mounted on the minimum pad size recommended (PCB Mount). Max. 3.5 50 110 Units °C/W Rev. B ©1999 Fairchild Semiconductor Corporation 1 IRLR120N 1&+$11(/ 32:(5 026)(7 Electrical Characteristics (TC=25°C unless otherwise specified) Symbol BVDSS ∆BV/∆TJ VGS(th) IGSS IDSS RDS(on) gfs Ciss C.
