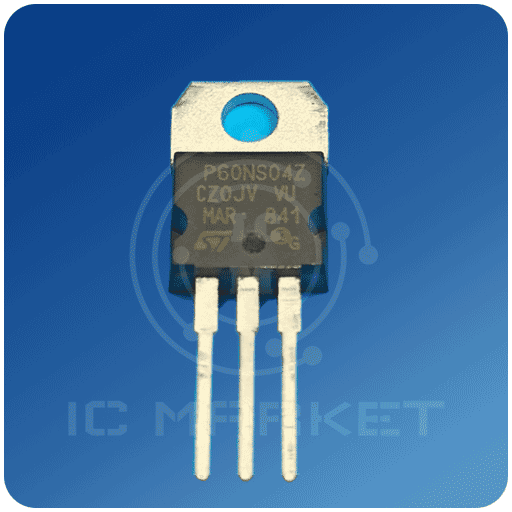

ترانزیستور P60NS04Z

STP60NS04Z N-CHANNEL CLAMPED 10mΩ – 60A TO-220 FULLY PROTECTED MESH OVERLAY™ MOSFET TYPE VDSS RDS(on) ID STP60NS04Z CLAMPED <0.015 Ω 60 A s TYPICAL RDS(on) = 0.010 Ω s 100% AVALANCHE TESTED s LOW CAPACITANCE AND GATE CHARGE s 175 oC MAXIMUM JUNCTION TEMPERATURE DESCRIPTION This fully clamped Mosfet is produced by using the latest advanced Company’s Mesh Overlay process which is based on a novel strip layout. The inherent benefits of the new technology coupled with the extra clamping capabilities make this product particularly suitable for the harshest operation conditions such as those encountered in the automotive environment. Any other application requiring extra ruggedness is also recommended. 3 2 1 TO-220 INTERNAL SCHEMATIC DIAGRAM APPLICATIONS s ABS, SOLENOID DRIVERS s MOTOR CONTROL s DC-DC CONVERTERS ABSOLUTE MAXIMUM RATIN.
