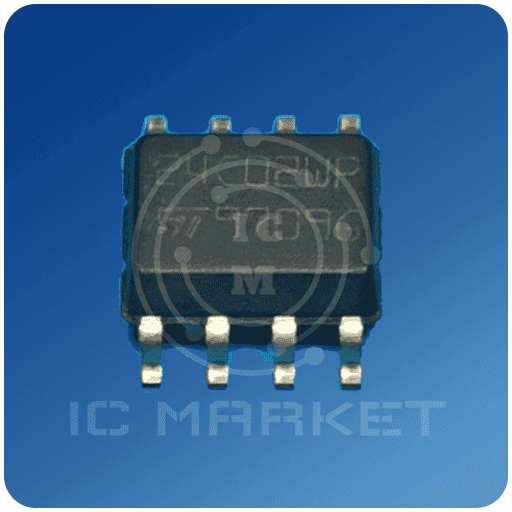

آی سی 24C02

STMicroelectronics

 Download 24c02WP Datasheet





Description

M24C01/02-W M24C01/02-R M24C02-F 1-Kbit and 2-Kbit serial I²C bus EEPROMs TSSOP8 (DW) 169 mil width SO8 (MN) 150 mil width   PDIP8 (BN)(1) UFDFPN8 (MC) DFN8 – 2 x 3 mm UFDFPN5 (MH) DFN5 – 1.7 x 1.4 mm Datasheet – production data Features Compatible with I2C bus modes: – 400 kHz – 100 kHz Memory array: – 1 Kbit (128 bytes) of EEPROM – 2 Kbit (256 bytes) of EEPROM – Page size: 16 byte Single supply voltage: – M24C01/02-W: 2.5 V to 5.5 V – M24C01/02-R: 1.8 V to 5.5 V – M24C02-F: 1.7 V to 5.5 V (full temperature range) and 1.6 V to 1.7 V (limited temperature range) Write: – Byte Write within 5 ms – Page Write within 5 ms Operating temperature range: – from -40 °C up to +85 °C Random and sequential Read modes Write protect of the whole memory array Enhanced ESD/Latch-Up protection More than 4 million Write cycles More than 200-years data retention Packages RoHS compliant and halogen-free (ECOPACK2®) 1. Not recommended for new designs October 2017 This is information on a product in full production. DocID024020 Rev 6 1/42 www.st.com Contents Contents M24C01/02-W M24C01/02-R M24C02-F 1 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 2 Signal description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 2.1 Serial Clock (SCL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 2.2 Serial Data (SDA) . . . . . . …
