توضیحات

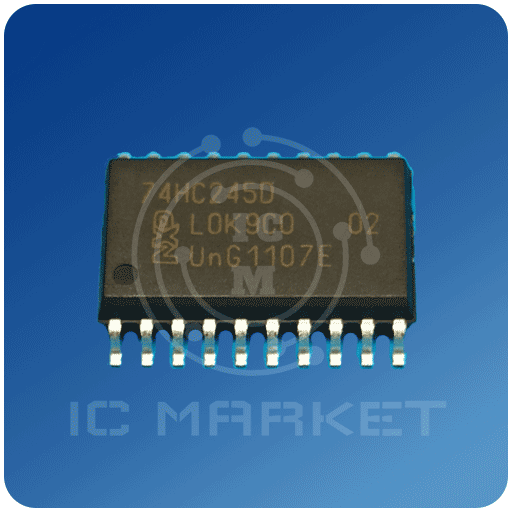

آی سی 74HC245D
74HC245D
| Part Number | 74HC245D |
| Manufacturer | nexperia |
| Description | Octal bus transceiver |
| Published | Dec 27, 2020 |
| Detailed Description | 74HC245; 74HCT245 Octal bus transceiver; 3-state Rev. 6 — 6 September 2021 Product data sheet 1. General description T… |
| Datasheet |  74HC245D PDF File |
Overview
74HC245; 74HCT245 Octal bus transceiver; 3-state Rev.
6 — 6 September 2021 Product data sheet 1.
General description The 74HC245; 74HCT245 is an 8-bit transceiver with 3-state outputs.
The device features an output enable (OE) and send/receive (DIR) for direction control.
A HIGH on OE causes the outputs to assume a high-impedance OFF-state.
Inputs include clamp diodes.
This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
2.
Features and benefits • Wide supply voltage range from 2.
0 to 6.
0 V • CMOS low power dissipation • High noise immunity • Octal bidirectional bus interface • Non-inverting 3-state outputs • Input levels: • For 74HC245: CMO…
